ICON 2008-UP TOYOTA LAND CRUISER, 2.5-3.5″ LIFT, STAGE 6 SUSPENSION SYSTEM
OVERVIEW
The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.
FEATURES & BENEFITS
Increased wheel travel and ride quality over stock
Improved vehicle dynamics and decreased body roll
Height adjustable coilovers provide 2.5-3.5″ of lift height
ICON engineered dual rate rear coil springs
Billet Aluminum rear lower links offer on-vehicle pinion angle adjustment
Vehicle-specific tuned front and rear shocks provide superior damping and control
Corrosion resistant CAD plated coilover shock bodies with 1″ shafts
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
CDCV technology allows for quick and easy compression damping adjustment without the need for tools
Shocks are fully rebuildable and revalveable
Bolt-on design means no cutting or welding necessary for install
TECH INFO:
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 34″ x 10.50″ (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #35: Remote Reservoir Mounting Brackets May Interfere With Aftermarket Bumper Mounts / Windshield Washer Bottles
APPLICATION NOTE #46: Suspension System Compatible With Kdss. Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles. Certain Years Require Trimming For Front Reservoir Bracket Fitment.
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.

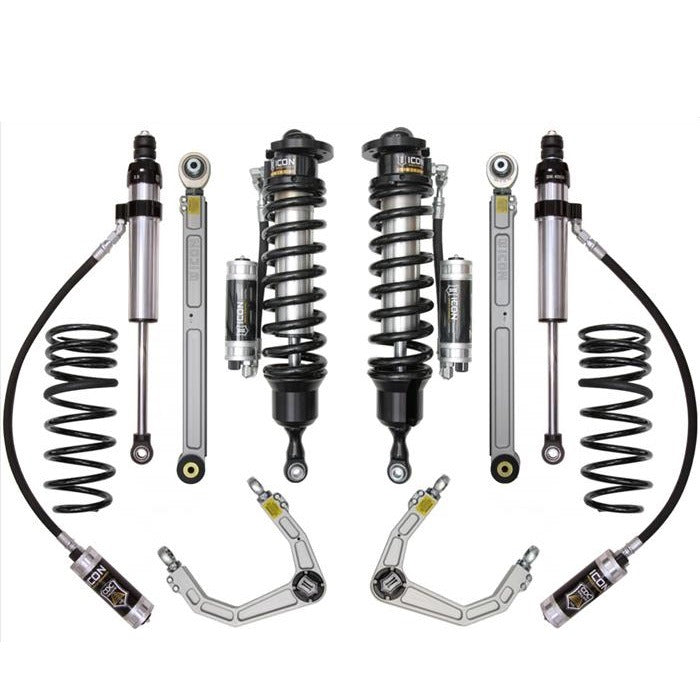

SYSTEM COMPONENTS:
58765 (QTY: 1) | 08-UP LC 200 3.0 VS RR CDCV CO KIT
58570DJ (QTY: 1) | 08-UP LC 200 BILLET UCA DJ KIT
57825CP (QTY: 1) | 08-UP LC 200 0-2″ REAR 2.5 VS RR CDCV PAIR
52750 (QTY: 1) | 08-UP LC 200 1.75″ DUAL RATE REAR SPRING KIT
54000 (QTY: 1) | 07-14 FJ/03-23 4RNR/08-21 LC 200/03-23 GX BILLET LOWER TRAILING ARM KIT
