ICON 2007-21 TOYOTA TUNDRA, 1-3″ LIFT, SUSPENSION SYSTEM

OVERVIEW

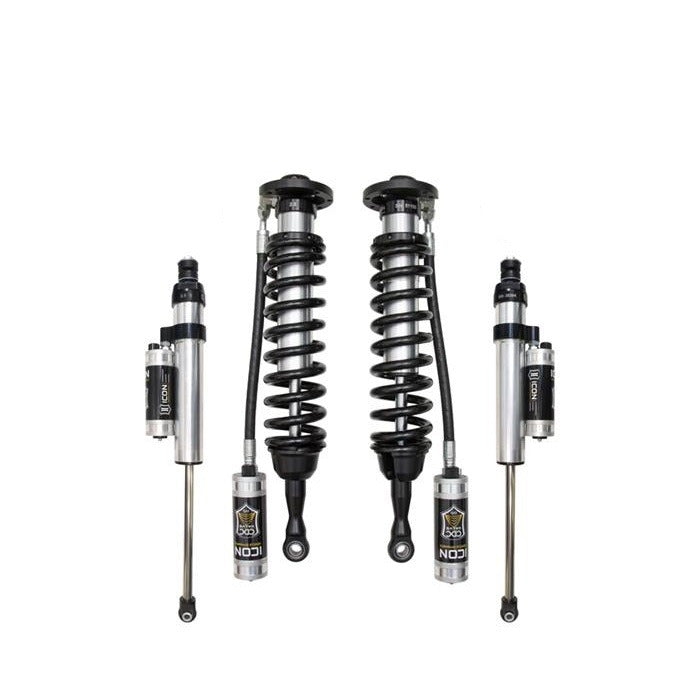

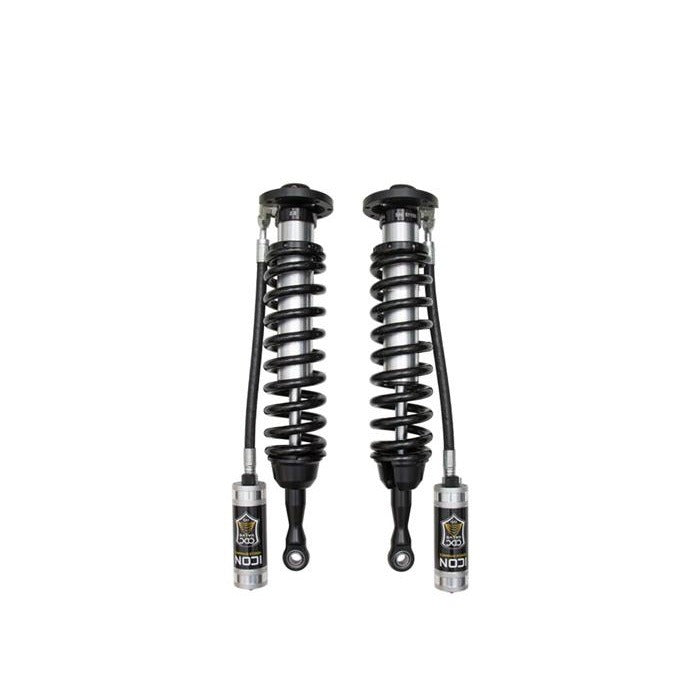

ICON Vehicle Dynamics Toyota Tundra Stage 6 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and includes our Compression Damping Control Valve (CDCV) for 10 clicks of tool free adjustment. These coilovers are also height adjustable from 1-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks utilize our CDCV valving that makes your suspension tunable front and rear. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra suspension system is an excellent choice for those drivers looking to tune the capabilities of their pickup on the road as well as in the dirt.

FEATURES & BENEFITS
Increased wheel travel and ride quality over stock with no change in towing capacity
CDC tuned front and rear shocks for a custom tuneable ride
Adjustable coilovers from 1-3″ of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
FK rod end bearings for extended longevity and minimal deflection

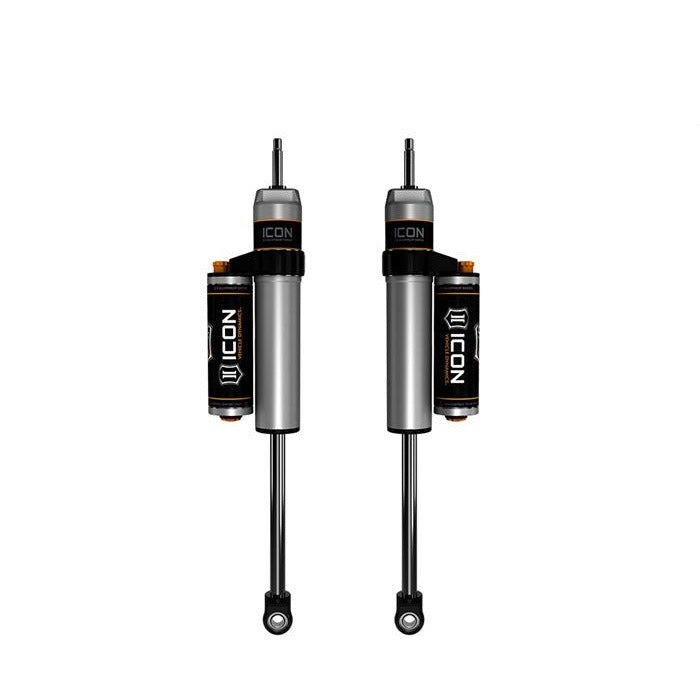

2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
100% Bolt-on system – no drilling, cutting, or welding necessary for install

TECH INFO:
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
APPLICATION NOTE #122: Not Compatible With Rear Trd Sway Bar Kit
