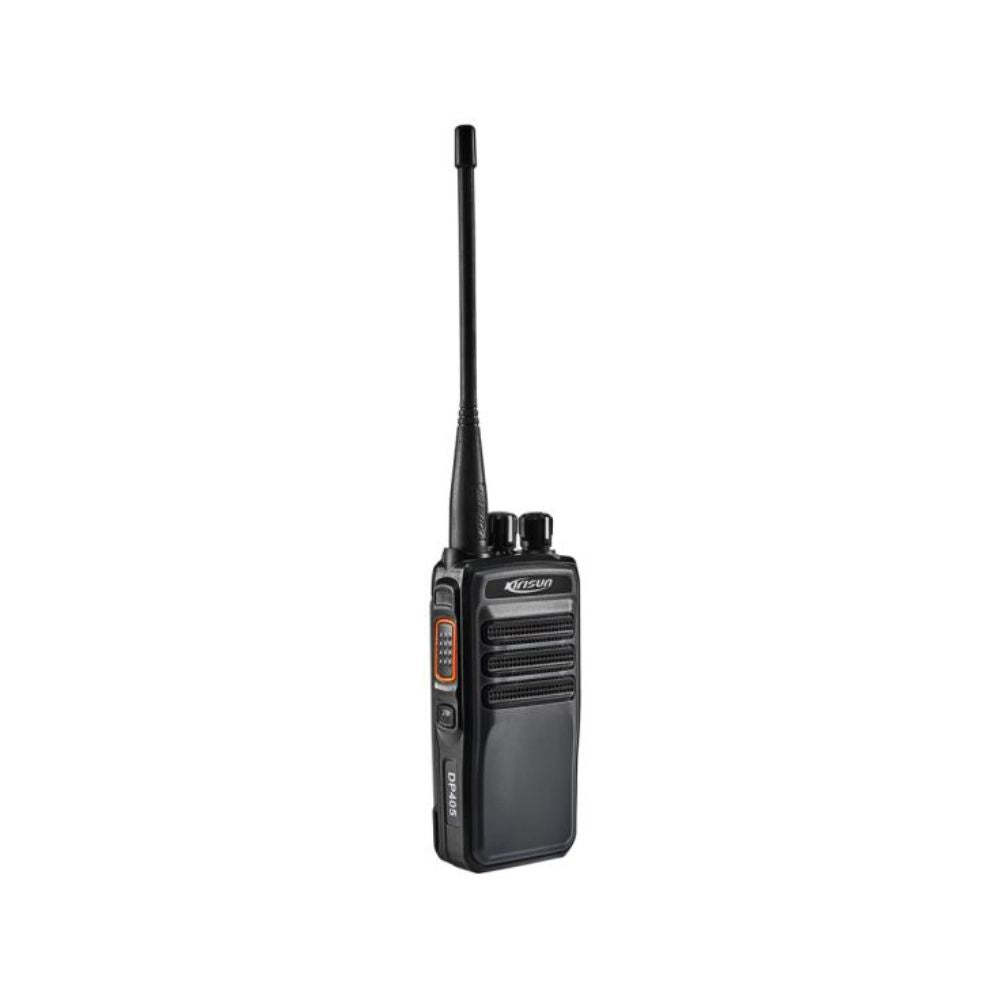

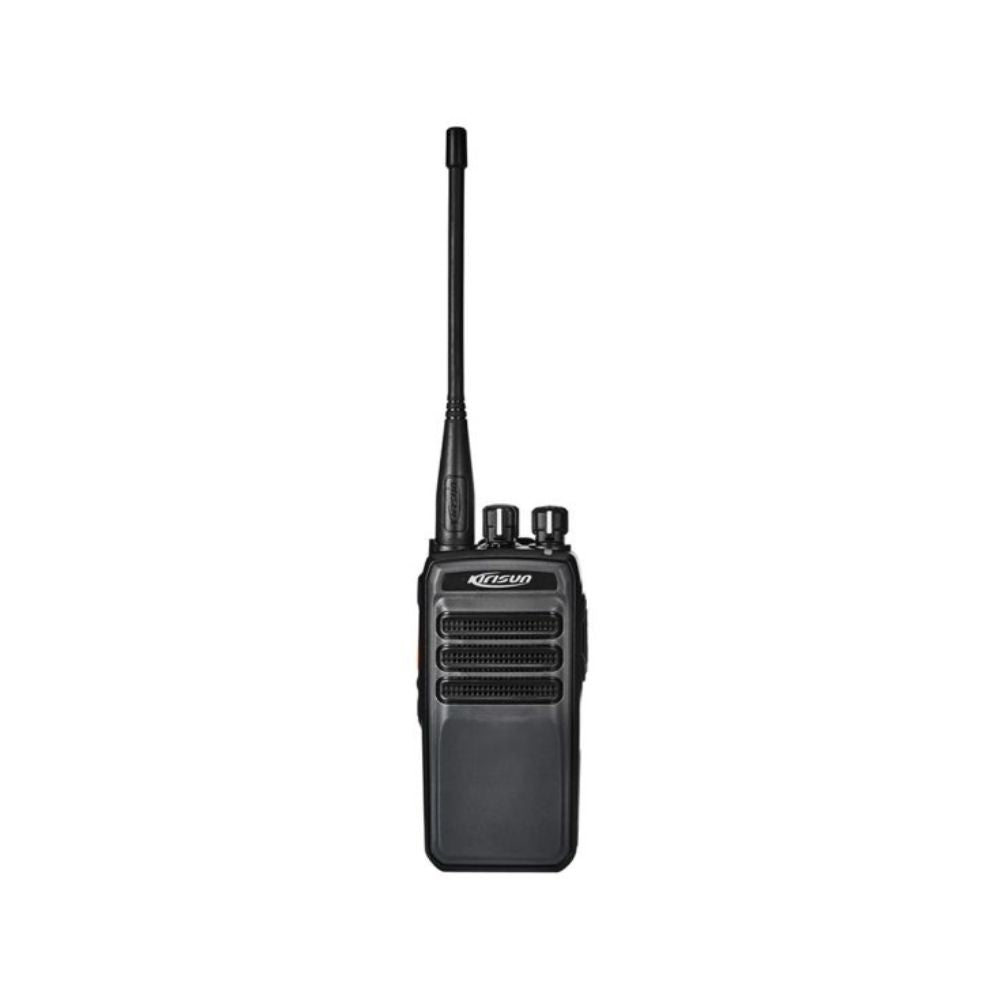

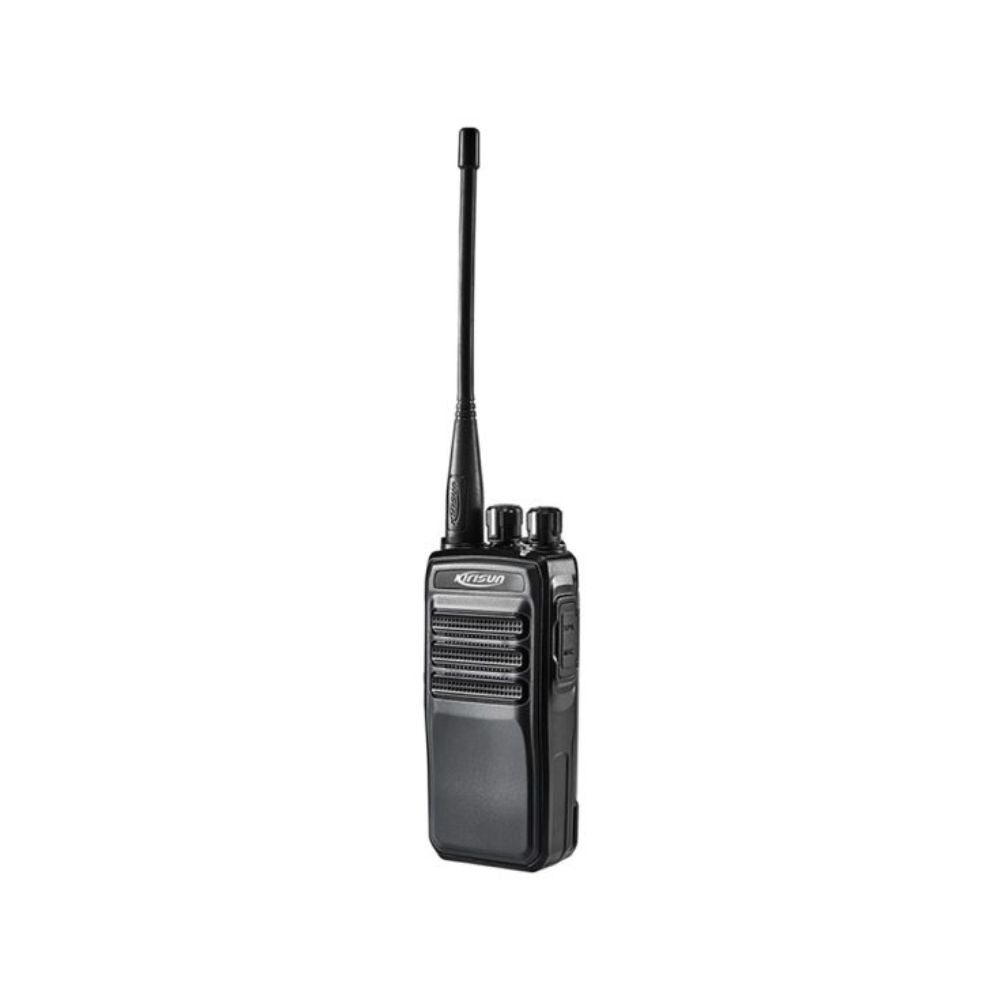

Kirisun DP405 Walkie talkie

Kirisun Portable Radio DP405 Walkie Talkie
A real professional with a heavy-duty compact design. Wherever you need to establish your own Kirisun DMR Tier II coverage, this small but powerful tool will be your partner.

The Kirisun DP405 is an entry-level professional radio that has the features you would expect on higher-end equipment. You will find superior audio quality with great coverage and long-lasting battery life. The DP405 features 256 channels, allowing you to create more targeted communications for the different functions within your workforce. The radio’s ergonomic design gives users access to all the controls even when wearing gloves, while the two programmable buttons and a wide selection of accessories allow many customization options for every user.

DP405 is a two-way digital radio from Kirisun. With a 256-channel capacity, each divided into 16 zones with 16 channels, it ensures adequate communication within a large workforce. The 16 zones allow each area of an enterprise to be allocated to its own region, which means that the sectors of the enterprise can talk without interruption from unwanted communications elsewhere in the facility.

Self-defined Voice Annunciation
Upload channel voice annunciation files to the radio through the programming software. Provides tailored channel names on channel change.

Compact Size with High Audio Output
The DP405 has a 1-watt high-power loudspeaker, which, combined with advanced digital voice encoding and forward error correction, brings loud and clear audio, even in a noisy environment.

Improved Call Capacity with DMO 2-slot
Features DMO 2-slot, which allows two group calls on the same frequency, at the same time, in Direct Mode. Call capacity on a single frequency is therefore increased and can save license costs.

Digital Radio Enhanced Features
The DP405 features Radio Check, Call Alert, Stun/Revive, Radio Kill, and Remote Monitor. These enhanced features assist radio fleet management. (Requires a Kirisun Dispatcher or Kirisun display radio to operate these functions on the DP405).

Longer Operation Duration
The TMDA technology used within the DP405, along with power-saving features, enables the battery to provide up to 16 hours of use under normal conditions. This is provided by the standard high-capacity lithium-ion battery supplied with the radio.

Emergency Call and Lone Worker
Enhance user safety with Emergency Call and Lone Worker functions. Features are programmable per channel.

ARC 40-bit Encryption Guarantees Safe Communication
The DP405 supports ARC 40-bit encryption, which provides a very high level of security with transmissions. The encryption will help prevent eavesdropping and keep radio calls private to the user.

Smooth Transition and Compatibility with Both Analog and Digital Mode
The DP405 supports both digital and analog channels to allow ease of migration. The DP405 user can switch between analog and digital channels to keep in touch.

General Specifications

• Frequency Range: VHF: 136.000 ~ 174.000 MHz | UHF: 400.000 ~ 470.000 MHz
• Channel Capacity: 256
• Zone Capacity: 16
• Channel Spacing: 12.5 KHz / 20.0 KHz / 25.0 KHz
• Operating Voltage: 7.5 VDC ± 20%
• Dimension: 116 mm x 54 mm x 31 mm (with battery and without antenna)
• Weight: 275g (with battery and antenna)
• Range: Up to 2.5 km (Replaced previous range)

Transmitter Specifications

• RF Power Output: 1W/4 Watt (UHF) | 1W/5 Watt (VHF)
• Frequency Stability: ±0.5 ppm
• 4FSK Digital Modulation: 12.5 KHz Data: 7K60F1D & 7K60FXD, 12.5 KHz Voice: 7K60F1E & 7K60FXE Combination of 12.5 KHz Voice and Data: 7K60F1W
• FM Modulation: 12.5 KHz: 11K0F3E, 25.0 KHz: 16K0F3E
• FM Hum and Noise: -40dB@12.5 KHz, -45dB@20.0/25.0 KHz
• Modulation Limiting: ±2.5 KHz@12.5 KHz, ±4.0 KHz@20.0 KHz, ±5.0 KHz@25.0 KHz
• Antenna Impedance: 50 Ohm
• Conducted/Radiated Emission: -36dBm@<1GHz, -30dBm@>1GHz
• Adjacent Channel Power: 60dB@12.5 KHz, 70dB@20.0/25.0 KHz
• Audio Response: +1~-3dB
• Audio Distortion: ≤ 3%
• Digital Protocol: ETSI TS 102 361-1, -2, -3
• Digital Vocoder Type: AMBE +2

Receiver Specifications

• Frequency Stability: ±0.5 ppm
• Analog Sensitivity: 0.2μV (12dB SINAD)
• Digital Sensitivity: 0.22μV/BER 5%
• Intermodulation: TIA603C: 70dB ETSI: 65dB
• Adjacent Channel Selectivity: ETSI: 60dB@12.5 KHz, 70dB@20.0/25.0 KHz
• Spurious Response Rejection: TIA603C: 70dB ETSI: 70dB
• Rated Audio Power: 1 Watt
• Rated Audio Distortion: ≤ 3%
• Hum and Noise: -40dB@12.5 KHz, -45dB@20.0/25.0 KHz
• Audio Response: +1~-3dB
• Conducted Spurious Emission: -57dBm@<1GHz, -47dBm@1GHz

Environment Specifications

• Operating Temperature: -30℃ ~ +60℃
• Storage Temperature: -40℃ ~ +85℃
• Thermal Shock: MIL-STD-810 C/D/E/F/G
• Humidity: MIL-STD-810 C/D/E/F/G
• ESD: IEC 61000-4-2
• Dustproof & Waterproof: IP54
