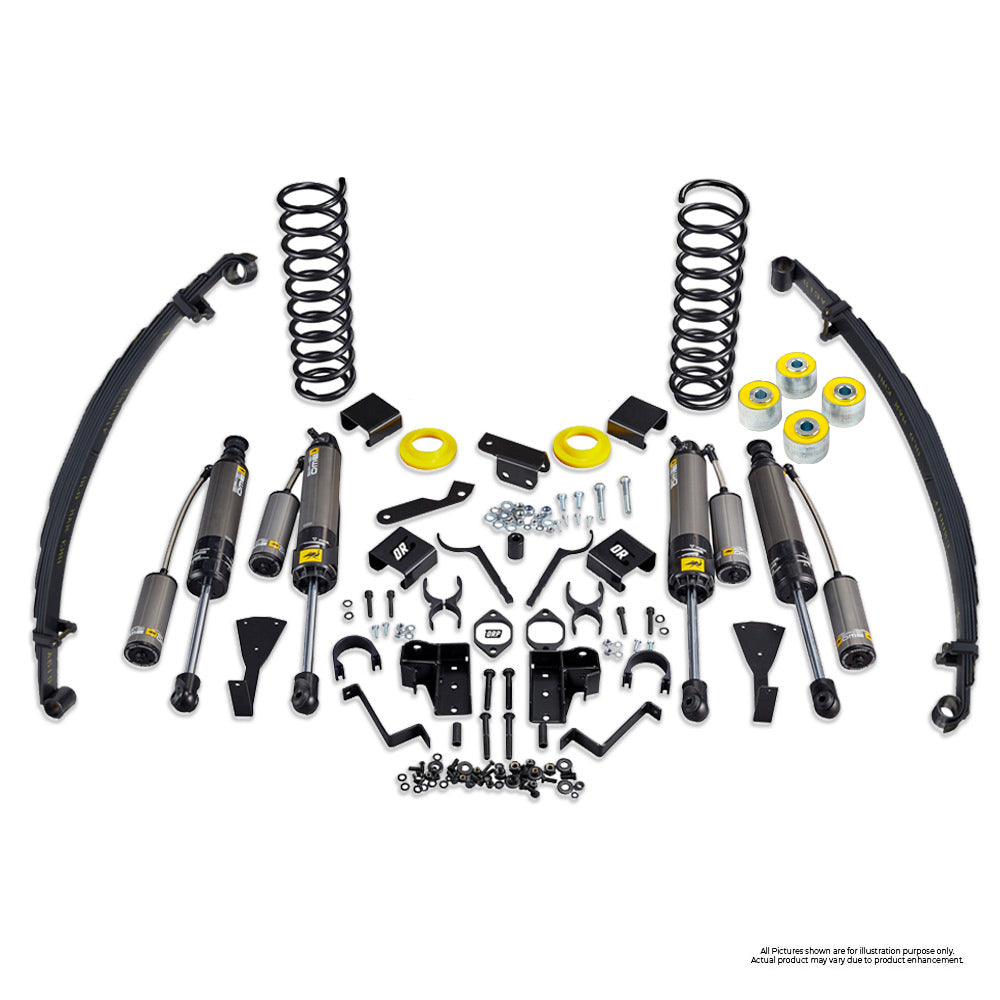

ARB | BP51 KIT | LC78 2007+ | MUST SELECT FRONT COIL & REAR LEAF

The BP-51 is a user-adjustable internal bypass 4WD shock absorber that enhances both comfort and control on and off-road. The body of a BP-51 shock absorber is manufactured using 6061 anodized aluminium to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance. Old Man Emu suspension systems have always focused on ride quality rather than ride height and this new line of shock absorbers includes some of the latest shock valving technology achieving a whole new level of ride quality. At ARB, we take integration to the highest level with our own selection of bushes, U-bolts, centre bolts, spring liners, trim packers and suspension fitting kits. ARB Greaseable Shackle Kits feature a unique, easy bolt together assembly that eliminates out of angle shackle pin to side plate problems. Old Man Emu designs a range of coil springs for each vehicle, enabling the installer to match the most appropriate springs to the intended application. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4×4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.

• Internal Bypass, Shim Controlled, Position Sensitive Damping:
• Provides comfort at ride height
• Damping increases as you get closer to the end zone
• Increased control at end zones
• Kidney Bypass Ports / 51mm Bore Diameter:
• Maximum bore size and bypass diameter
• Greater oil volume
• More tunable, with the ability to generate force
• Vehicle-Specific Applications:
• No fitting modifications required
• Fit kits included
• External Compression and Rebound Adjustment:
• On-car adjustable
• Independent adjustment of compression and rebound
• Ultra-wide range to suit varying loads and ride preferences
• Body/Reservoir/Components – 6061 T6 Aluminium:
• Excellent heat dissipation
• Superior corrosion resistance
• Type 3, 40 Micron Hard Anodized Finish:
• Enhanced corrosion resistance
• Abrasion resistance to stone damage
• DASH 6 High-Temperature Teflon Hose with High-Flow Fittings:
• No restriction of oil flow
• High-Pressure Nitrogen Reservoir with Aluminium, Anodized Floating Piston:
• Increased oil volume
• Maximizes travel
• Impact-Resistant, Replaceable Shaft Guard:
• Protects against stone damage
• Quality Oversized Rubber Bushings:
• Ensures durability
• Shock Absorber Design: Absorber does not carry a spring
• Shock Absorber Type: Gas Pressure
• Shock Absorber System: Mechanically adjustable shock strength
• Shock Absorber Mounting Type: Top eye
• Shock Absorber Mounting Type: Bottom eye
• CASTER CORRECTION KIT:
• Caster Correction Kit
• Consists of 4 Eccentric Bushes Which are Pressed into the Leading Arms of the Vehicle
• Increases Caster by 2 Degrees
• Induces Positive Caster Into the Front Geometry
• For Use With 44mm Wide Control Arms
• U BOLT:
• Leaf Spring U-Bolt
• Used For Installation of Rear Leaf Springs
