Crony Kw850 Konnwei Professional OBD2 Scanner Auto Code Reader Car Diagnostic Tools (Original)

OBD2 ODB2 Scanner Auto Diagnostic Scanner KONNWEI KW850 Full Function Car Diagnosis Car Scanner Universal OBD Engine Code Reader

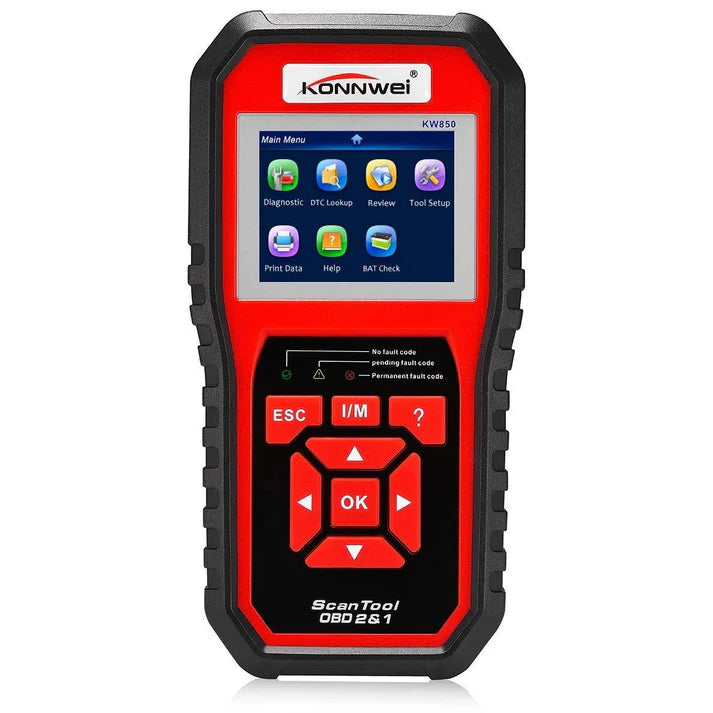

2. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.

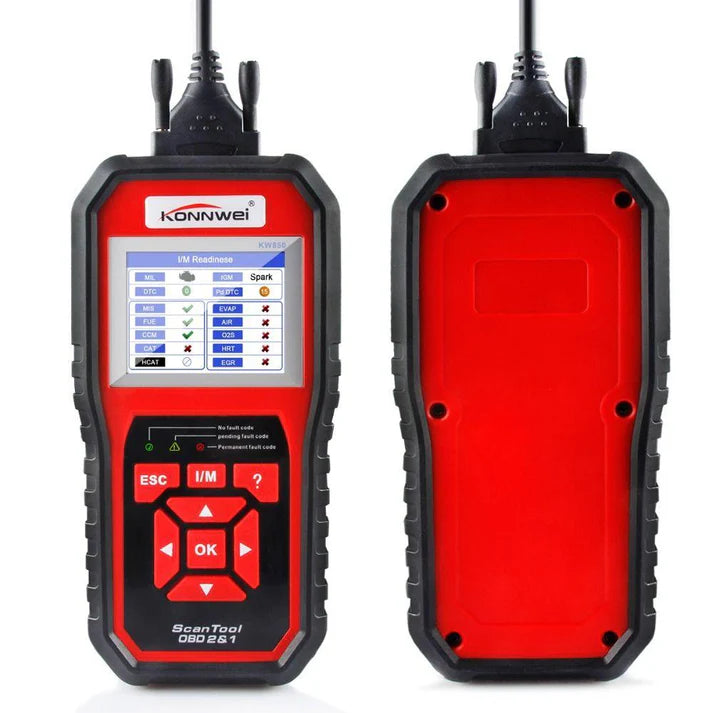

3. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification.

4. Patented appearance design & Key pad, unique patented One-Click I/M Readiness Key, it is the best partner for car repairing.

5. Featured 24-hr battery real-time monitoring during diagnostics, keep your car battery in healthy status.

6. Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when away from the vehicles.

7. Data printable through USB cable, allows modify and print-out storaged data.

8. Internet upgradable via usb port, adapted to Windows XP- Windows 10. (other scanners only work for windows 7)

KONNWEI KW850 Supports Car Makes   KW850 supports both diesel and gasoline vehicles, as long as the car is compliant with standard OBDII protocols, with OBDII 16pins Diagnostic Port.



American (USA) car for Standard OBD2 Cars from 1996 to Now: for Chrysler, for Ford, for GM, for Jeep   European car for Standard OBD2 Cars from 2004 to Now: for Alfa Romeo , for SAAB  , for Acura  , for Opel,  for Audi , for Seat  , for Peugeot , for Bentley , for Skoda , for Daewoo, for Benz , for Daihatsu  , for Land Rover, for BMW , for Vauxhall , for Citroen,  for Volvo , for Fiat , for VW , for Ford , for Jaguar   Japanese car for Standard OBD2 Cars from 2006 to Now: for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan,  for Subaru ,  for Suzuki, for Toyota.   Chinese car:  for Standard OBD2 Cars from 2011 to Now:     NOTICE: Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.   Warning: Not Support Russian Cars before 2012, VAZ,UAZ,LADA ; Not works with trucks for Renault, SsangYong, please contact us before purchasing.   Leave us message in below format, we will reply you within 8 hours.     for example : xx, 2005, 2.0cc, Diesel

    KW850 Life-time Free   Update   software 1. Please press the scanner and hold, then connect the scanner to PC with USB cable included in the package, the screen will be turned to "UPDATE MODE"

Notice: Please turn off anti-virus software when installing the update tool, otherwise it will not be able to install the driver properly. the Update tool can be found from official website (refer to user manual)

2. download and Install the "uplink" program to your PC( Windows xp- 7 only), you will find the below page, All you need is one-click, the program will search the update from our server, download and upgrade it by itself. No need any other operation, save the time and money.

3. Wait for the update process finished, the scanner KW850 will be ready to go! we will update to latest version before shipping out, normally there is no need to update for a long while.



KW850 Auto Diagnostic Scanner Data Printing Guides

1. After install the "uplink" program on PC, connect the scanner to PC with USB cable. (No need to press any buttons)

2. Launch the program"uplink" ,  Select "Print" option.

3. Operation on scanner:  go to main menu, select " Print Data" ; Select the data option that you want to print to PC,

4. After select the "print data", the data stream that storaged in the scanner will be sent to PC software, you may modify them before printing them out from PC's printer.

      KONNWEI KW850 Specification   Display:  2.8'' Wide TFT color screen Operating Temperature: 0 to 60 ℃ (32 to 140 ℉) Storage Temperature: -20 to 70 ℃ (-4 to 158 ℉) Power: 8 to 18 V provided via vehicle Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network  ISO 11898) Device Dimensions: 19.5cm （7.68''） x 10cm (3.94'') x 3.5mm (1.38'') Weight: 0.6KG ?
